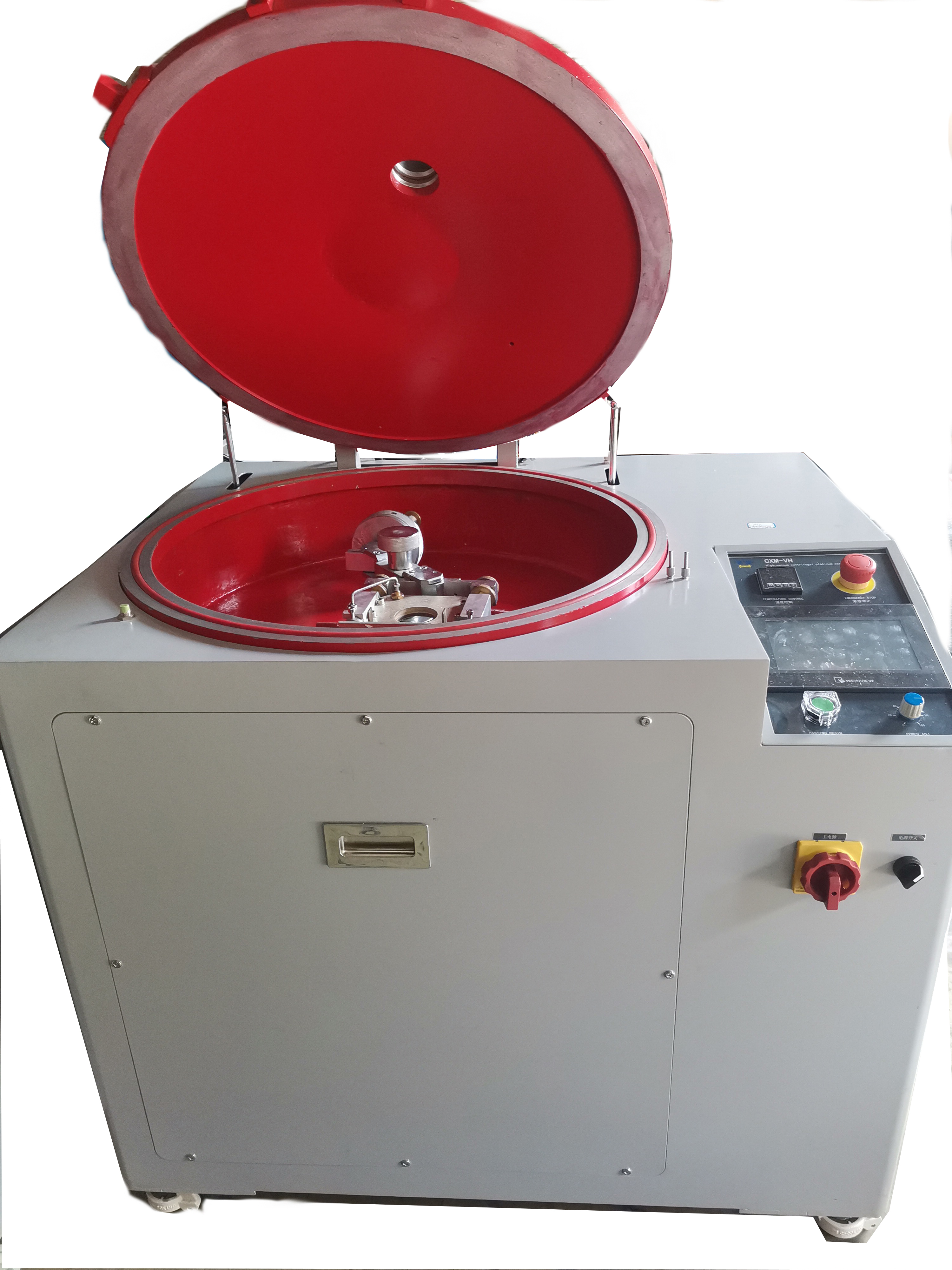

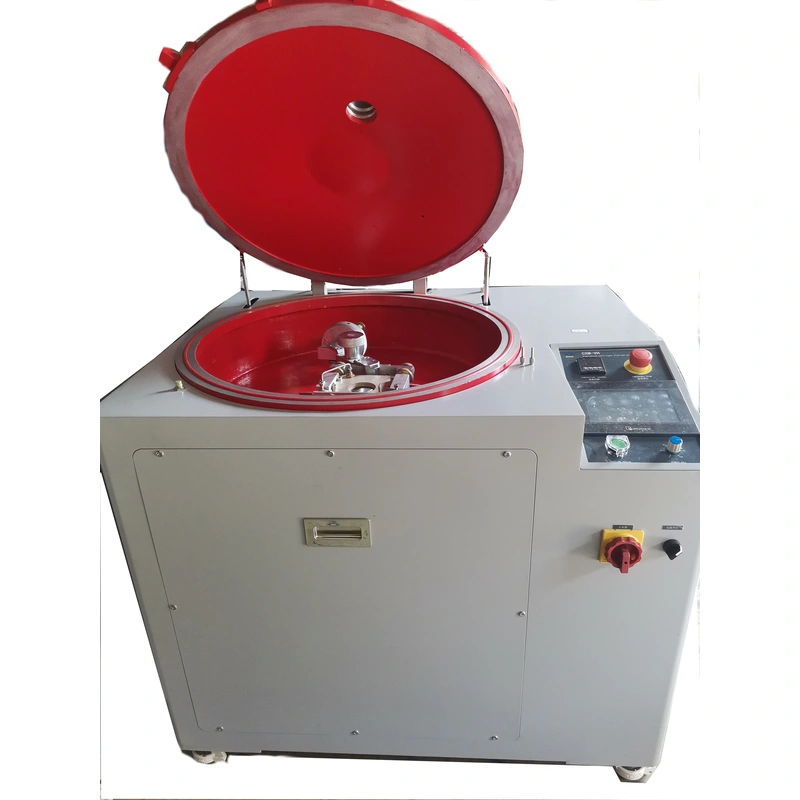

JE-PTC Platinum Vacuum Centrifugal Casting
robust and easy to use
designed for small and medium casting laboratories.
suited for steel, nonferrous and precious metals, including platinum, palladium.
Crucible and mould loading operation introduces oxygen
The Gas Wash Purge procedure removes the oxygen (1) in a very fast and efficient way and then refills back the chambers with Argon, Nitrogen or Helium gas (2)
Advanced Self Tuning thermoregulation with exact temperature control of the molten alloys
Accurate control of the temperature with a proprietary narrow band optical pyrometer or with rotating thermocouple

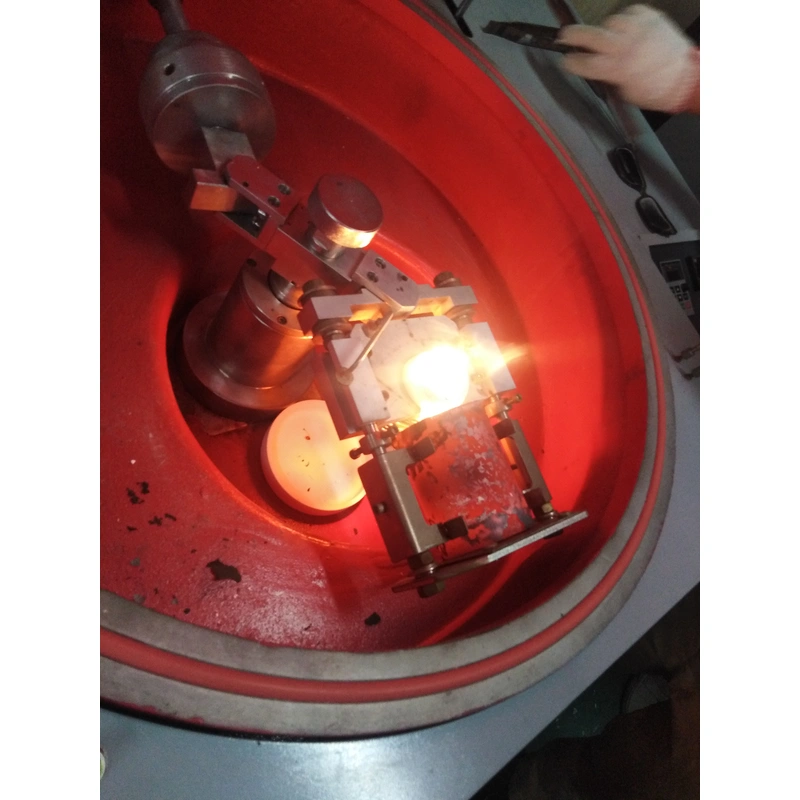

Medium frequency induction heating stirs the melted alloy and leads to a perfect homogeneity
Magnetic field frequency has been studied for best coupling and energy transfer

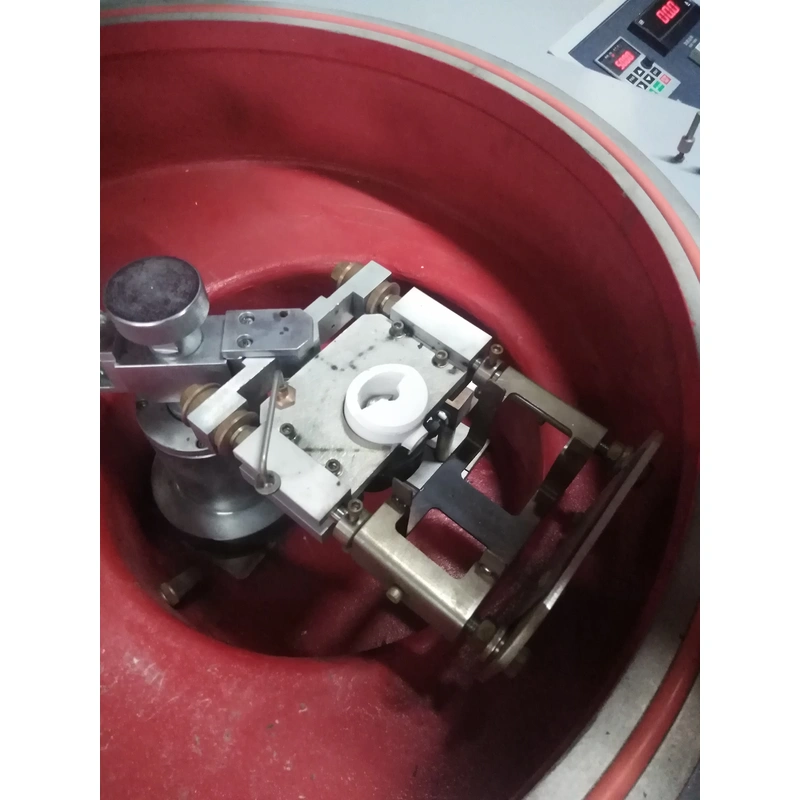

When the charge is molten, the coil is retracted and the arm starts to spin.
During the spinning the metal gets out from the crucible and enters the flask.
Rotational speed profile, which controls the injection rate, can be regulated digitally for a consistent and reliable mould filling.
The final speed will compress the tree during the solidification phase to reduce shrinkage porosity.
After the solidification phase, the flask cools down in a protective atmosphere to avoid oxidation.
A blinking lamp will signal the operator that the cycle has ended and the flask can be removed
Power supply:Triphase 380V
Frequency:80KHZ
Power:0-6kw adjustable
Metal molten capacity:400G
Casting weight:300G
Applied metal:Platinum,Palladium, Stainless steel
Centrifuge method. Crank arm centrifuge
Centrifugal speed:Frequency conversation and adjustable
Lifting method:air-operated
Shielding gas:Argon Nitrogen
Cooling method:hydrocooling with pure water
Uncap method:auto-elevation
Machine size:1020*790*1150(mm)
