Flexible performances on gold in all karats, silver, brass and bronze
Stone-in-wax casting
3D printed resin direct casting

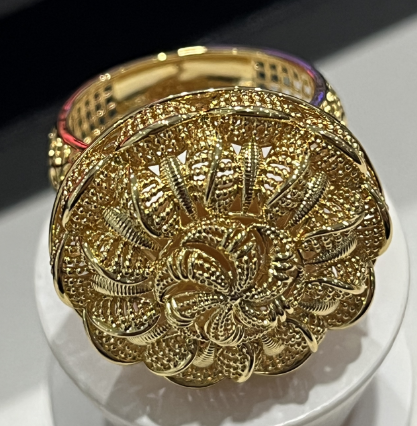

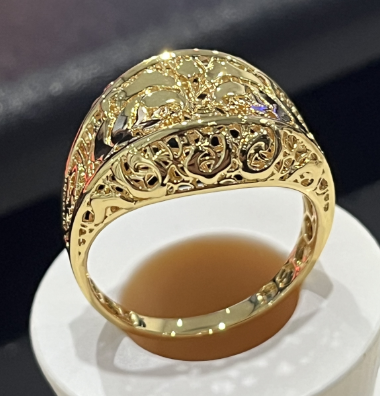

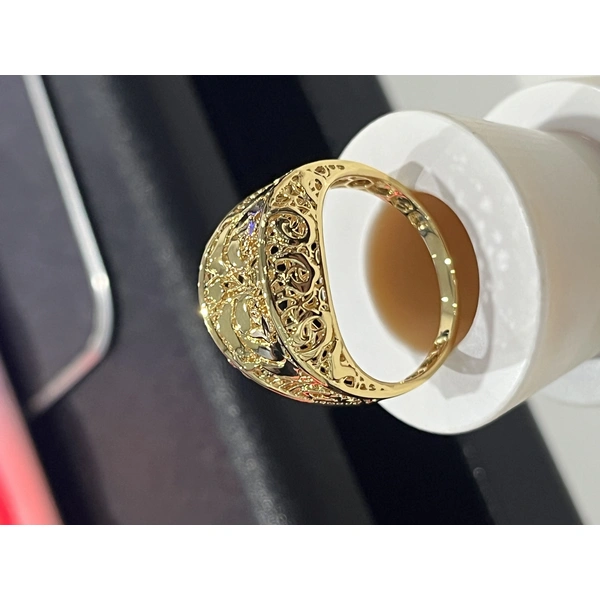

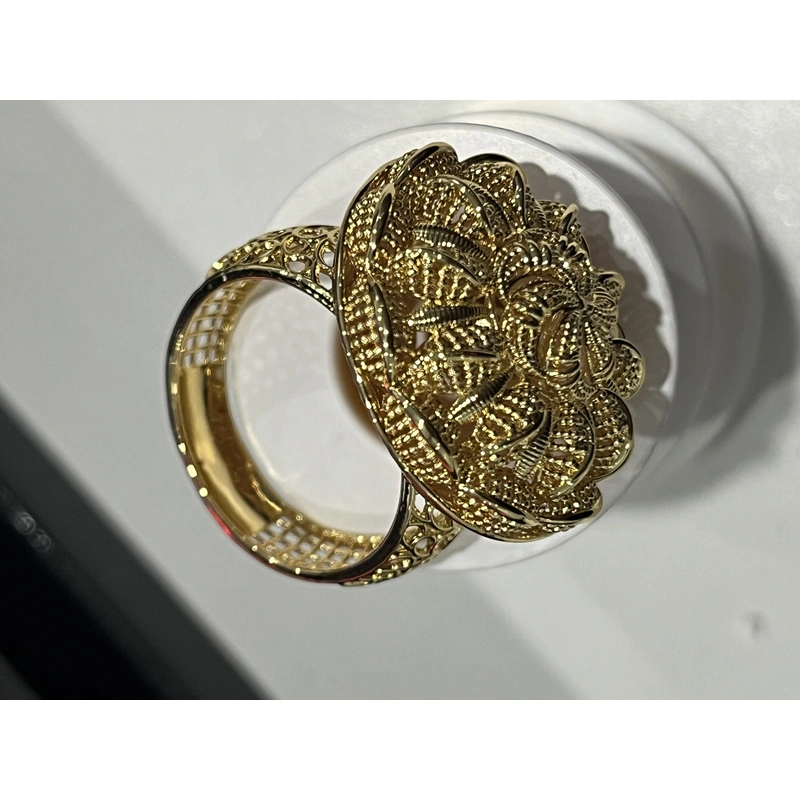

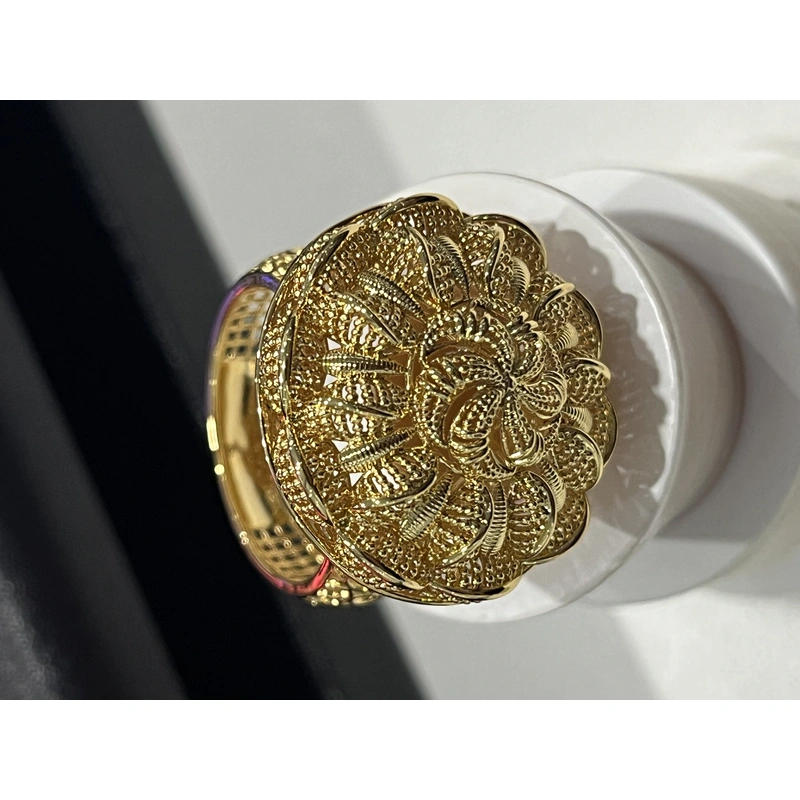

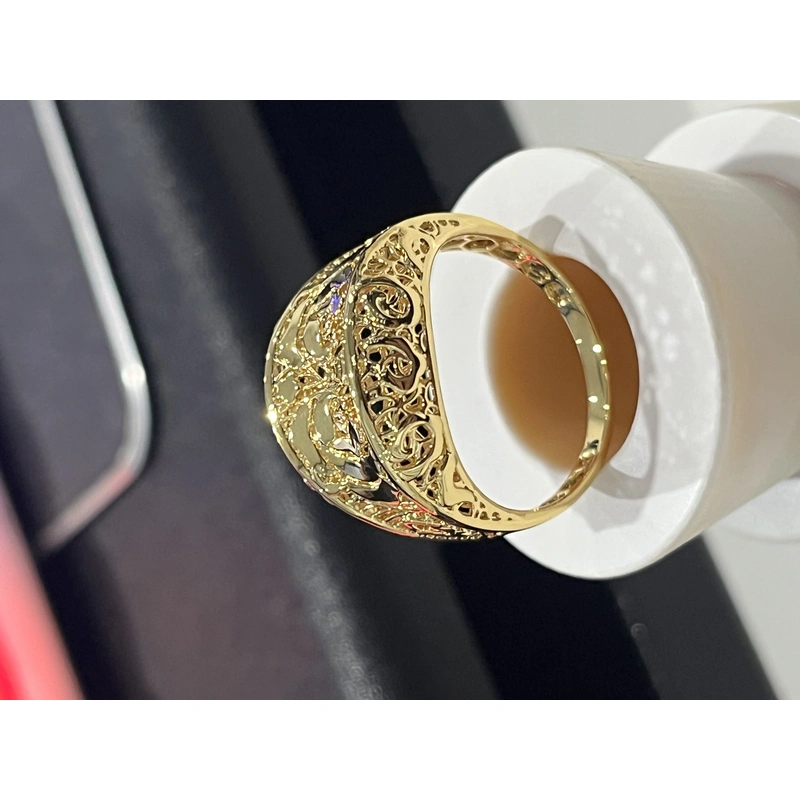

Filigree and very difficult design casting with fantastic results achieved in easy way and consistently.
Like for the other double chamber vacuum casting machines, in MINI melting chamber and flask chamber are completely indipendent: at the moment of casting the machine can control the metal injection into the mold by applying a differential pressure during pouring. This yields to a faster injection compared to the simply gravity pouring with the benefit to cast items at lower temperature. This will result in better surface finishing of the cast parts.

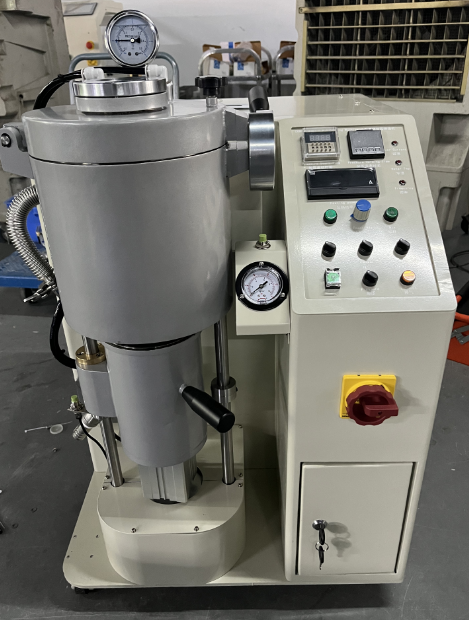

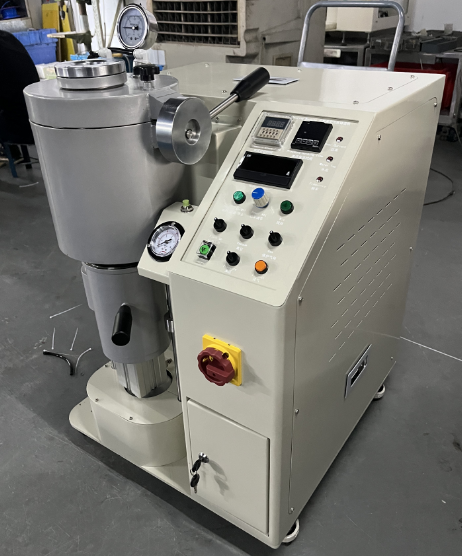

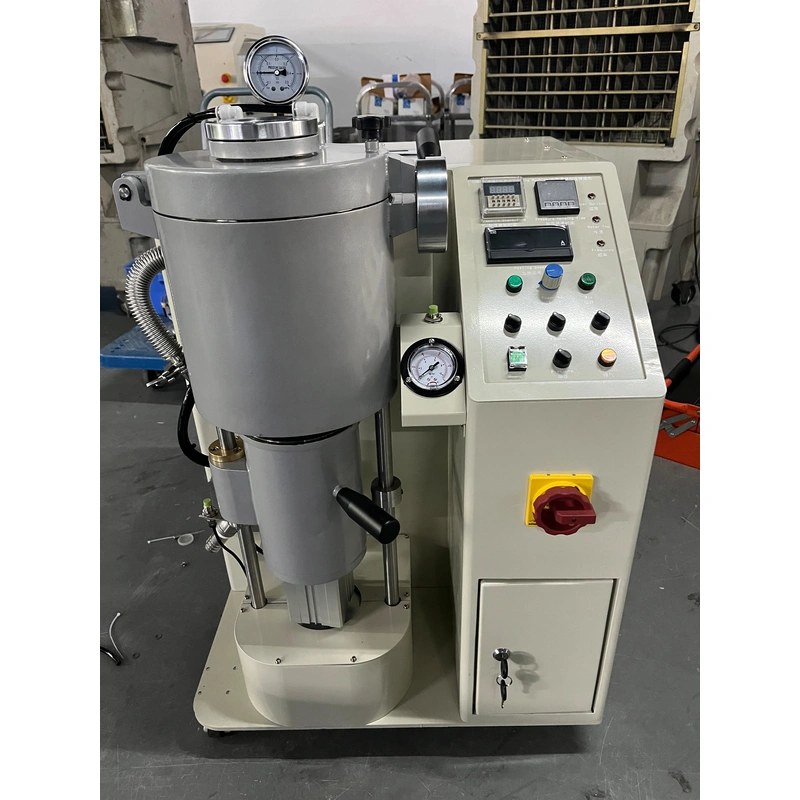

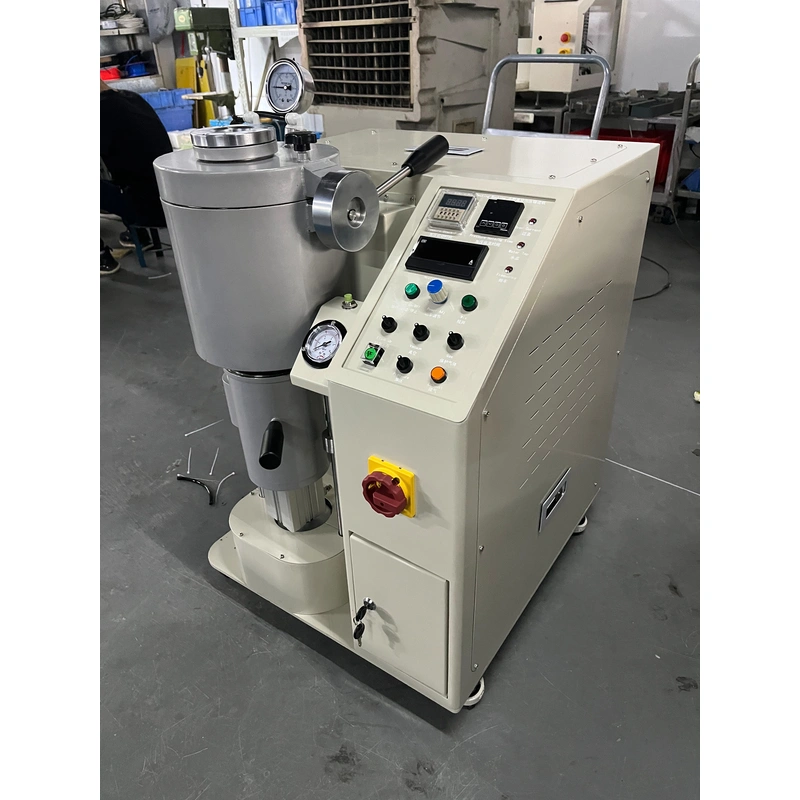

JE-Mini vacuum pressure casting machine
Parameters:
Power supply: Single 220/ triple 380
Power: 4KW
Metal category: Gold, silver, copper
Metal capacity: 500g
Temperature range: 0~1300℃
Maximum pressure: 0.2MPA
Shielding gas: Argon or nitrogen
Cooling method: water cooling
Casting method: vacuum suction casting pressure casting
Exception Warning: Self-diagnosis display
Ambient temperature: 5~40℃
Water supply: 10~30℃, 1P water cooler is recommended
Max size of powder cup: Diameter 3*6 inches high
Product features:
1, this machine has a MINI body, occupying a small space of automatic operation, suitable for jewelry DIY studio, gold shop small jewelry workshop, etc. Mini vacuum pressure casting machine is a good helper for small processing places and intelligent.
2, the unique strong electromagnetic stirring function, so that the melting metal more uniform color.
3, induction heating, high degree of intelligence.
5, can intuitively and conveniently observe the whole process of melting casting, pneumatic self-locking system, with safety control valve to ensure man-machine safety.
6, melt casting under vacuum protection gas state, the oxide is controlled to a minimum,
7, can choose a variety of specifications casting cylinder.
8, perfect self-alarm system, in case of abnormal phenomenon, immediate shutdown, maximize the maintenance of the fuselage internal system.
9, special casting room, discrete vacuum device, the bubble discharged to the lowest point.
10, the maximum pressure of the casting room is 0.6MPa, the normal pressure is 0.2MPa, and the vacuum pressure is negative 0.1MPa.
11. The maximum steel cup size is 3"x6 ".
