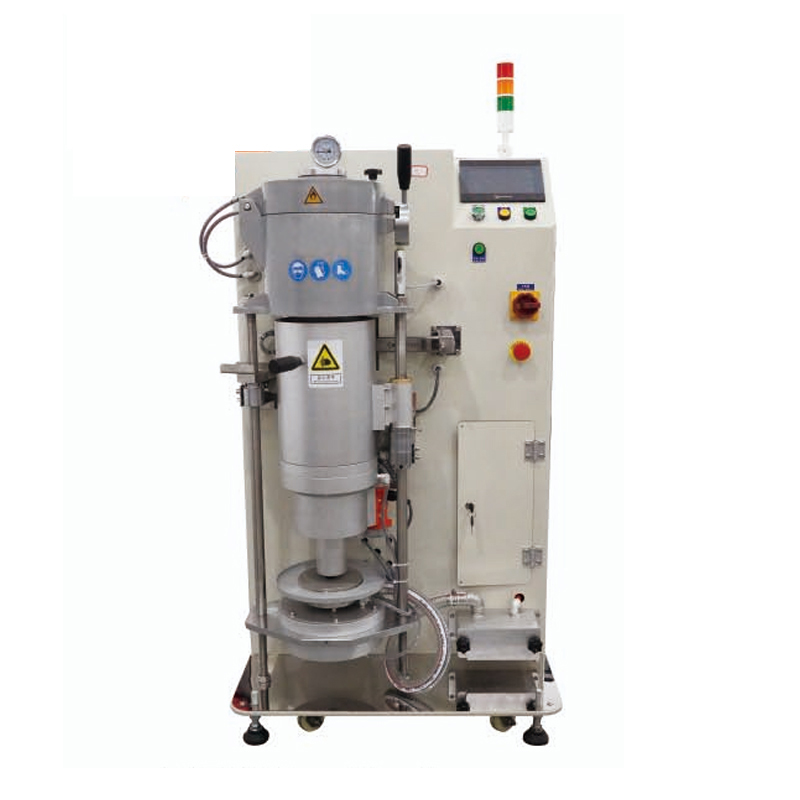

The J-18 Fully Automatic Vacuum Gold Casting Machine this setup optimizes form filling and produces castings with reduced porosity, finer grain, and excellent post-processing properties. It features an 10 kW induction generator and a variable vacuum in the flask chamber. The crucible has a maximum volume of 150 ccm, accommodating up to 2 kg of 18 ct gold. It supports flask sizes up to Ø 130 mm x H 260 mm and operates at temperatures up to 1,600°C.
The new control panel, featuring a real text LCD display, allows for easy and comfortable setting of all programs and parameters. With 50 casting programs available, fast operation and consistent casting results are guaranteed. Parameters for all major alloys, such as AGS, Alpha Plus, Heraeus, Legor, and Pandora alloys, come preprogrammed. This means you can expect excellent casting results from the first flask without the need for expensive preliminary tests.
Introducing a New System for Faster and More Laminar Metal Flow
The vibration technology is the most crucial of all technical features. Independent scientific studies demonstrate that:
Vibration improves material flow and hence the quality of the mould filling, particularly with complicated moulds.
Castings exhibit a higher and more consistent density for all tested alloys and shapes.
Porosity is substantially reduced.
Risk of hot cracks is reduced.
50% smaller grains
Castings have greater stress and elasticity properties, making them easier to process further.
higher and more consistent casting quality, less waste, less post-processing, more possibilities for further processing.
TURBO PRESSURE

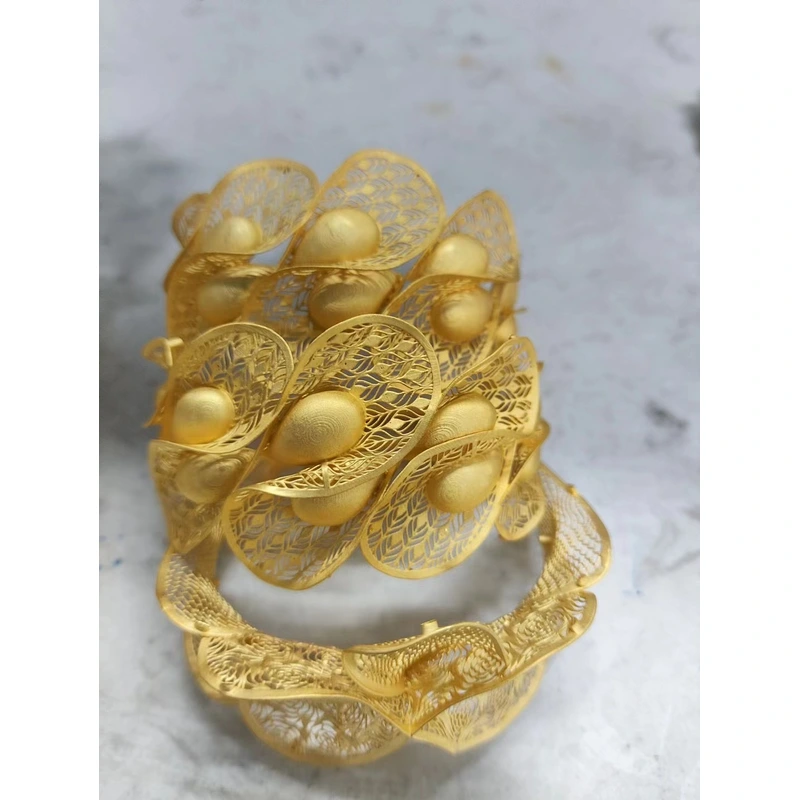

Optimizes the casting of very small and filigree objects. J18 automatic casting machines guarantee perfect results when casting withstones for jewelry production. This feature alsoallows for user-defined precision pressure to beachieved at a rapid pace.
Turbo Pressure will start automatically dependingon the selected program exactly at the requiredtime for all program-controlled J-18 models.
CONSISTENTLY SUPERIOR CASTING QUALITY
The J-18 series’ special “reduced-oxidation" casting systemeliminates the danger of oxidation during flask cool down withup to 25% higher tensile strength. Encounter fewer issues laterin the manufacturing process such as ring resizing or stonessetting.Automatic inert gas or vacuum within the melting chamberprevents undesired oxidization or inclusions formation duringmelting; a particularly important when casting silver or red gold.
Machine specification
Power supply: AC380V 50HZ
Power: 10KW
Melting metals: gold, silver, copper
Metal capacity: 2Kg (Gold)
Cooling method: Water cooling
Using gas: argon or nitrogen
Casting temperature: 1600℃
Machine characteristics
1. No need for alloying, color uniformity, no segregation, eliminating melting furnace
2. Vibration of castings for fine grain, reducing air bubbles
3. Extremely high vacuum suction and rapid pressure, excellent performance for both large and ultrafine castings
4. Suitable for wax inlay
5. Fully automated operation (50 memory modes)
6. Lower casting waste than similar products on the market.
7.Professional casting small production。
