Description

MACHINE PROPERTIES*

Build Envelope(LxWxH):180 x101x100 mm

XL version availablewith 200 mm Z-Height

Native XY Resolution:93 μm

Enhanced XY Resolution:60 μm

Z Resolution:10μm

Warranty:12months

Footprint(LxWxH):550*550*1060mm

Weight:50kgs

Electrical Requirements:110/220 VAC 50/60 HZ 5A

SYSTEM PROPERTIES

Layerless technology delivers parts with superior surface finish

Domeless technology delivers the highest accuracy in Z

High-resolution industrial projector with UV glass

LED light source at 385 nm wavelength for higher accuracy on clear partsand crisper details across all parts.

High-speed continuous printing

Finish an entire 3L build volume in just 4.5 hours – 30% faster than competing systems and 10x faster than desktop SLA.

The cDLM process allows for continuous printing without the need to peel each layer off the film after it is polymerized.

A ‘dead zone’ is formed by flowing a thin layer of oxygen above the film of the printing bed. Within this ‘dead zone’ the polymerization process is inhibited ensuring the layer being printed adheres to the layer above and not the printing bed film. This ‘dead zone’ is what enables continuous printing, where the build plate can continually move in the Z axis, leading to faster, more reliable prints.

Best-in-class part performance

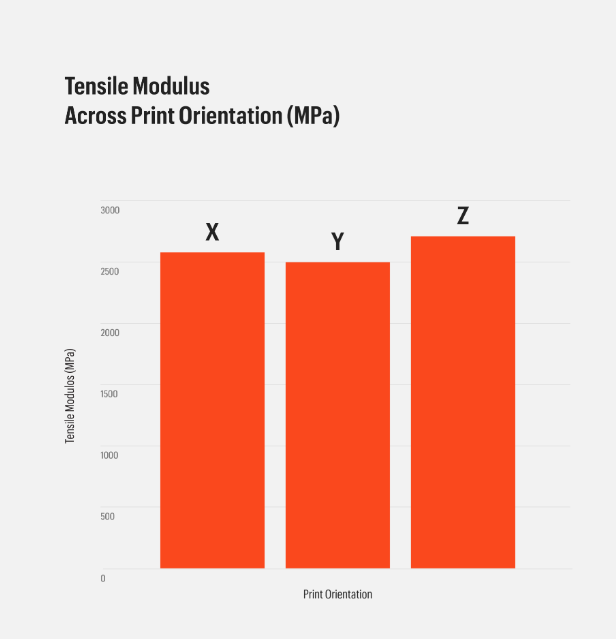

The JE-3D-R1 leverages long-chain polymer chemistry to produce strong, stable parts. The result is isotropic parts suitable for end-use applications and capable of standing up to the most demanding conditions.

High accuracy and resolution

Featuring patented “domeless” printing technology, the JE-3D-R1eliminates any concerns about how “doming” may impact accuracy on the Z axis. High-resolution (60 um XY) printing make it easy to create fine features and smooth surface finishes suitable for end-use parts.

High-resolution printing

The Envision One cDLM delivers best in class part resolution and accuracy to print incredibly crisp features and hold tightest tolerances.

DLP is known for having incredibly high resolution parts and the EnvisionONE CDLM takes accuracy to new heights.

By using industrial DLP chips, verus cheaper consumer grade chips, and a custom designed optical train enable high contrast and minimal distortion for the projected picture resulting in accuracy down to the micron level.

The cDLM domeless printing process eliminates the “dome” effect to deliver incredible Z accuracy.

Easy to use software

The brains of the Envision One cDLM is EnvisionONE RP which streamlines the entire fabrication process, ensuring optimal part orientations, print settings, and printer productivity.

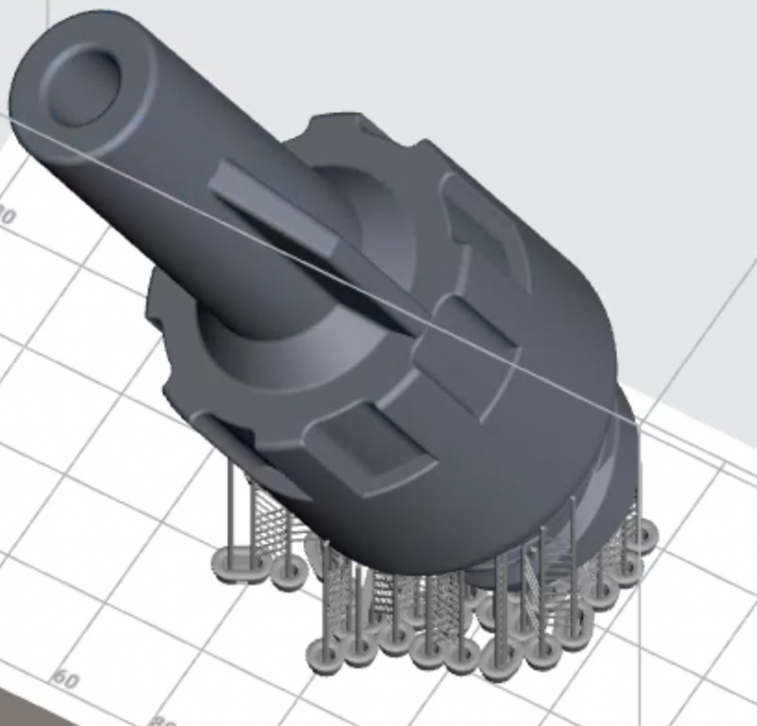

Intuitive, easy-to-use Envision One RP software automates support generation and part orientation, while an integrated file repair tool patches meshes and readies the parts for print. Cloud software allows users to remotely manage the system, send jobs to multiple printers and monitor job progress, while over-the-air software and firmware updates ensure users have access to the most up-to-date tools and processes.
