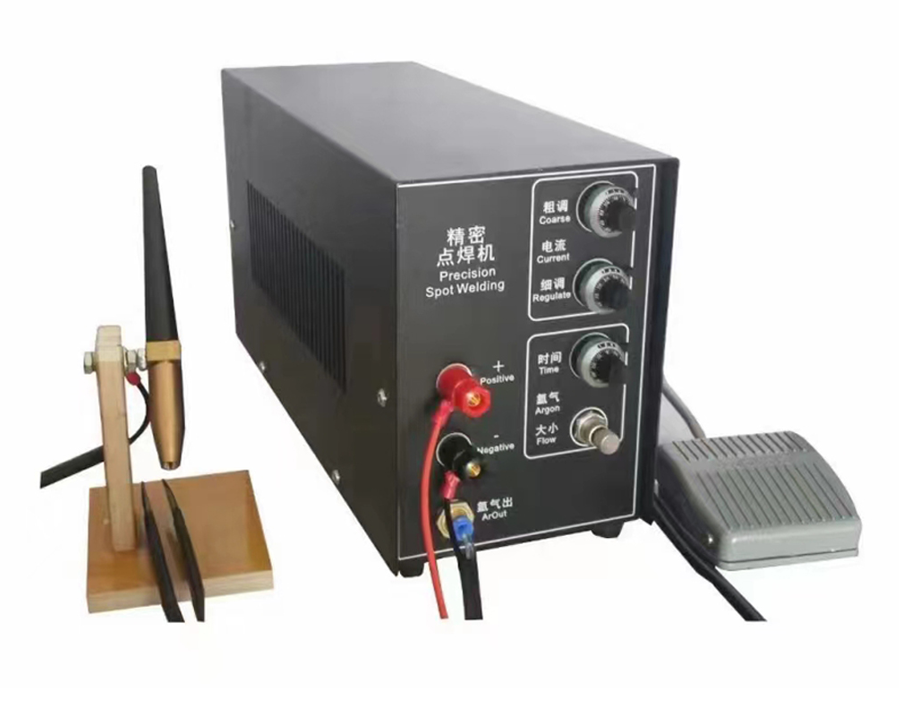

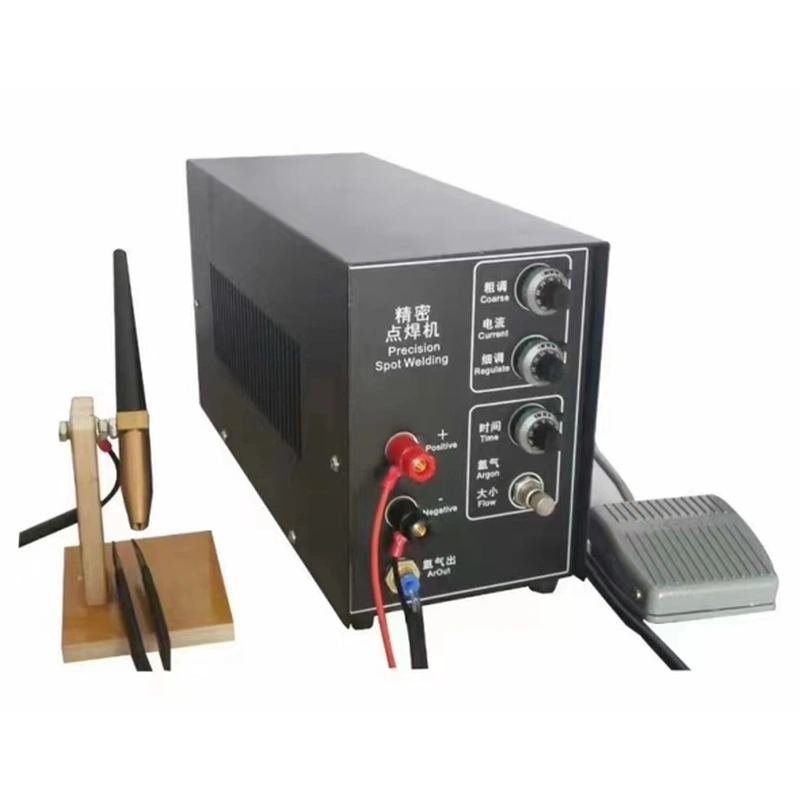

Welding materials: gold, platinum, K gold, silver, coppertitanium, stainless steel and
other metal materials.
Diameter range: about 0.3~1.5mm.
Output current:80~120A. Input voltage: 220Vac/50Hz.
Dimensions:L*W*H about 130*380*200mm.
Weight: about 6Kg
1. Preparation: Connect the spot welder to the power supply, adjust the current and time parameters, and select the appropriate welding head and welding pliers as required.
2. Prepare the workpiece: Clean the jewelry parts to be welded and ensure that the surface is free of oil or oxide.
3. Adjust the welding head: select the right welding head according to the material and size of the jewelry, and install it on the spot welding machine.
4. Install the workpiece: Clamp the jewelry parts to be welded on the welding pliers, ensure that the clamping and maintain stability
5. Start welding: Place the welding pliers on the workpiece welding position, use the foot switch to start the spot welding machine, and release the foot after the undetermined time to complete the welding.
6. Check the welding effect: check whether the welding is firm, if necessary, can be secondary welding or dressing.
7. Cleaning and maintenance: After use, clean the welding head and maintain the point machine
8. Pay attention to safety: in the operation of spot welding machine, pay attention to avoid electric shock and spark sputtering, use protective equipment and facilities to ensure their own safety.
